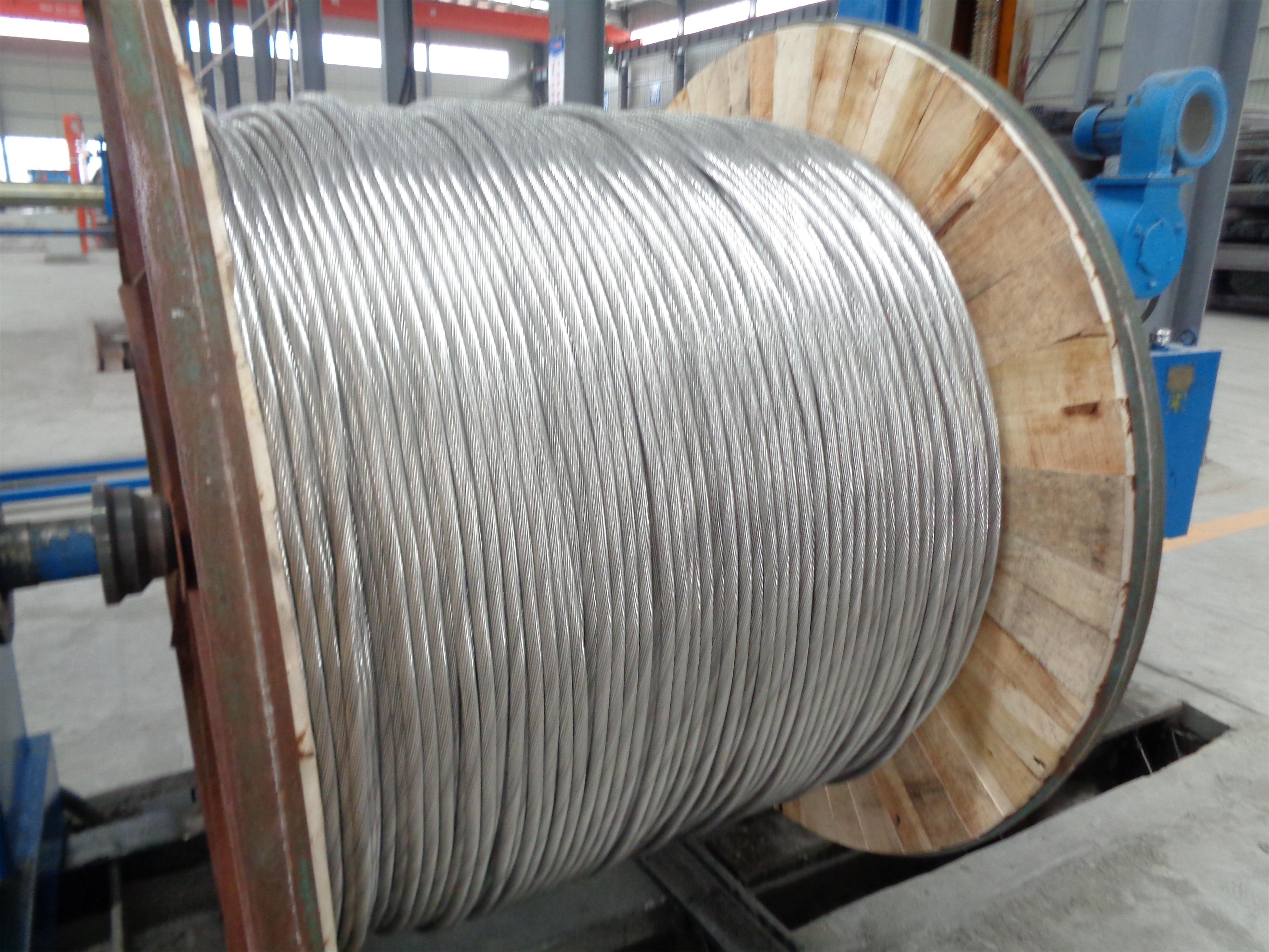

Power Distribution Lines ASTM ACAR 650MCM All Aluminum Alloy Conductor Cable

Brand Name : Sanwu

Model Number : ACAR

Certification : ISO,CCC

Place of Origin : China

MOQ : 500m

Price : 0.1-10

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 100 tons per day

Delivery Time : 5 days

Packaging Details : wooden drums

Application : Overhead

Conductor material : Aluminum

Type : Low/Medium/High Voltage

Color : Silvery White

Standard : IEC60502

Conductor : Alulminum,Copper / 8000 Aluminum Alloy

Conductor type : Stranded Conductor

Sample : free sample

Size : as your requests

Feature : All aluminum stranded conductor

Contact Now

Power Distribution Lines ASTM ACAR 650MCM All Aluminum Alloy Conductor Cable


Our main products: ACSR, AAC, AAAC conductors, ABC cables, power cables, Aluminum rod, etc., in all standard like IEC, ASTM, BS, DIN and CSA. We also provide OEM/ODM service.


ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer.

ACAR is an excellent conductor choice where current carrying capacity ,higher strenghth and lower conductor weight are critical to the line design.

Product NameAluminum Conductor Alloy Reinforced (ACAR)
ConductorAluminum/Copper
ConstructionAluminum Stranded & Aluminum Alloy Reinforce
ColorsAssorted upon request
Voltage600-1000V, 1KV-35KV
ApplicationUsed as bare overhead conductor for power distribution lines
StandardsGB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

1.Standard

ASTM B524 ,B 230, B 398, IEC61089, etc Application

2.Construction

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

3.Features

1. ACAR offers excellent balance mechanical and electrical properties.

2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3.It is a compromise choice between AAC,ACSR,and AAAC.

4.It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.

4.Part of ACAR(6201) conductors of ASTM sizes.

Size KcmilStranding No.& Dia.(In.)Cross Sectional Area(Square In.)Nominal Conductor Dia. (In.)

Nominal weight

(Lbs/1000FT)

Rated Strength

( Lbs)

1350620113506201Total
503.615*0.16284*0.16280.31220.08330.39550.81447310500
587.215*0.17584*0.17580.36440.09710.46120.87955112200
649.518*0.132519*0.13250.24820.26200.51020.92760816600
653.112*0.18547*0.18540.32400.18900.51300.92761215400
739.818*0.141419*0.14140.28270.29830.58100.99069318800
853.730*0.15197*0.15190.54370.12680.67051.06380117500
853.724*0.151913*0.15190.43490.23560.67051.06380019300
927.224*0.158313*0.15830.47230.25590.72821.10886920900

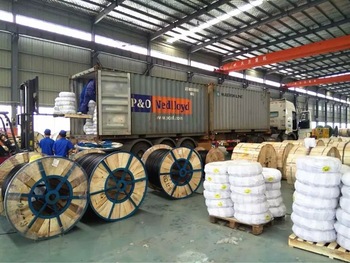

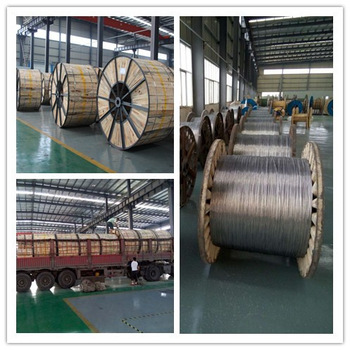

5.Packaging and Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
